Diesel Steamer - OPTIMA DMF
icon OVERVIEW
icon COMPARING OPTIMA XD VS. XDm
IconCOMPARING THE SPECS
MODELS XD XDm
Operating Voltage 1-Phase 100V ~ 240V 1-Phase 100V ~ 240V
Operating Pressure 8.5bar 8.5bar
Max Pressure 9.5bar 9.5bar
Max. Temp. at Gun Tip 135°C 135°C
Boiler Temp. 178°C 178°C
Steam Flow Rate 300 ~ 1,800cc/min 250 ~ 500cc/min
No. of Steam Outlet Valve 2ea 1ea
Preheating Time 3 ~ 4min 3min
Power Consumption 0.3kW 0.28kW
Fuel Consumption 0.2 ~ 1.1ℓ/hr 0.2 ~ 0.7ℓ/hr
Water Tank Capacity 36ℓ 11ℓ
Fuel Tank Capacity 11ℓ 36ℓ
Net Weight 89kg 52kg

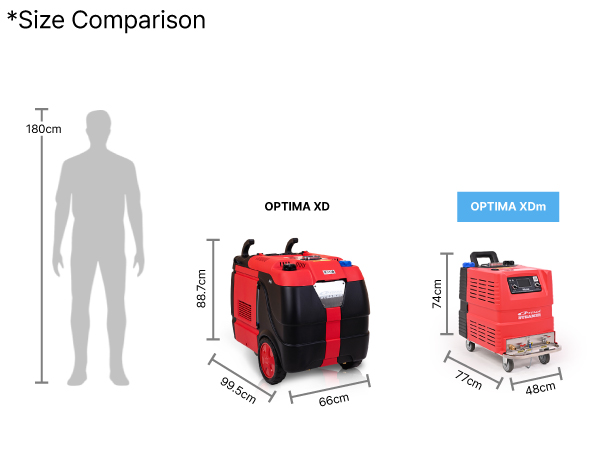

Dimensions (L x W x H) 995 x 660 x 887mm 770 x 480 x 740mm
IconFEATURES

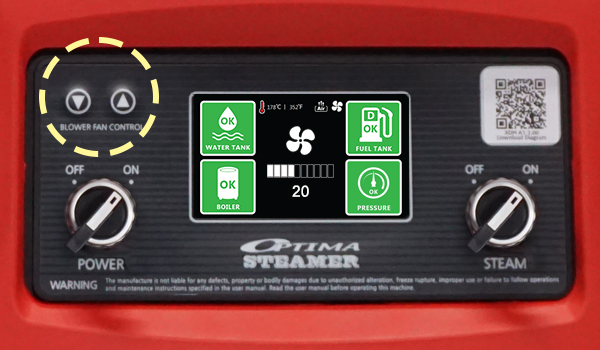

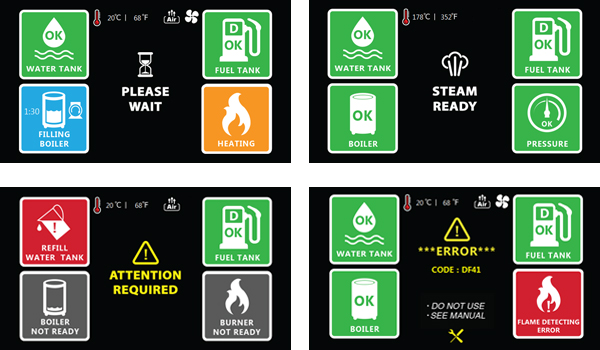

  • SMART LCD MONITOR CONTROL SYSTEM
  • The XDm’s intelligent CPU and LCD monitor make operation and maintenance simple
  • DIGITAL AIR INTAKE ADJUSTMENT
  • The fan can be controlled from the LCD screen on the front of the unit with the push of a button, giving users easier control over emissions

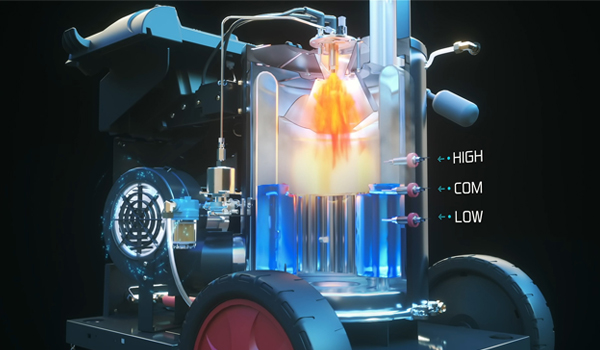

  • POWERFUL HEATING, EFFICIENT DESIGN
  • The XDm’s patented boiler system fuels its unrivaled power, quickly delivering more dry steam, continuously with a quick preheat time of only 3 minutes

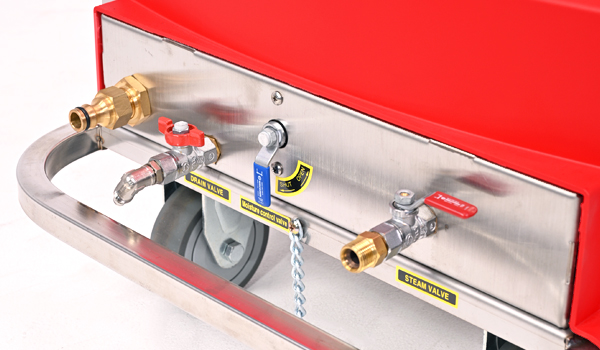

  • DRY AND WET STEAM
  • Increase the moisture output of the steam spray for tougher jobs

    Hot water is delivered from the boiler to make quick work of heavier oils and caked on dirt

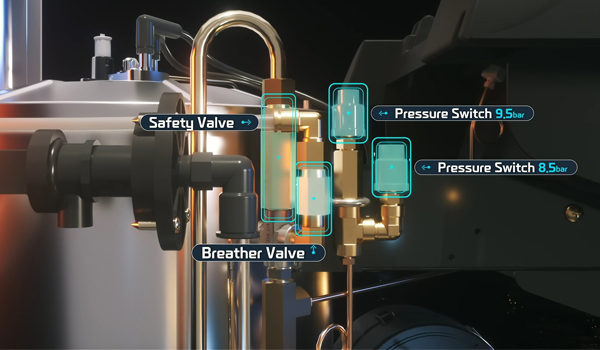

  • SIMPLIFIED OPERATION, RELENTLESS SAFETY
  • The XDm has been intelligently designed so it can be operated by almost anyone

    With multiple safety devices installed, it takes the worry out of operation
IconACCESSORIES
Steamer Accesspries

Steam Gun K26
* Included

Steamer Accesspries

Steam Hose 10M
* Included

Steamer Accesspries

Steam Extractor
Hand Tool

Steamer Accesspries

Turbo
Steam Nozzle

Steamer Accesspries

Quick Coupler
Steam Gun K26

Steamer Accesspries
iconAPPLICATION

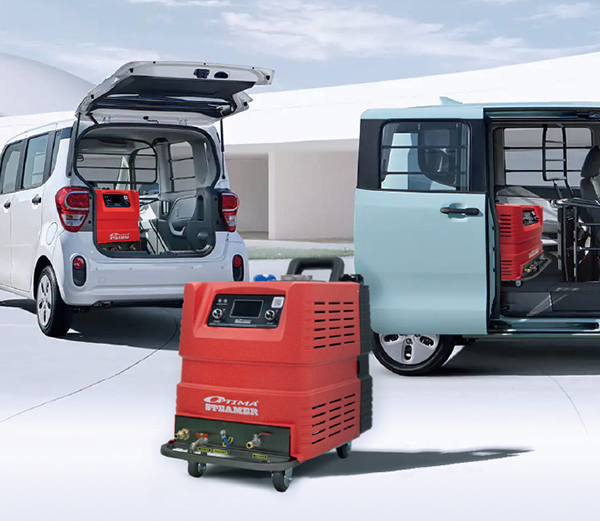

Mobile Car Wash
Mobile Car Wash
  • • Clean a car using less than 4 liters of water
  • • No waste water collection, virtually no runoff
  • • Cleans interiors, mats, engines all
Car Detailing
Car Detailing
  • • Continuous dry vapor steam sanitizes while it cleans
  • • Easily remove gunk and grime from nooks & crannies
  • • Reduce chemical usage, deodorize
Facility & Hospitality
Facility & Hospitality
  • • Eliminate odors where they start by cleaning with steam
  • • Quickly sanitizes surfaces, fabrics, cushions, and other high-contact areas with no waste water
HVAC Coil Cleaning
HVAC Coil Cleaning
  • • Safely clean evaporator and condenser coils, air handlers, aluminum grating and exhaust hoods
  • • Kill molds, penetrates harborage areas
IconSPECIFICATION
MODELS XDm
Operating Voltage 1-Phase 100V ~ 240V
Operating Pressure 8.5 bar
Max Pressure 9.5 bar
Max. Temp. at Gun Tip 135°C
Boiler Temp. 178°C
Steam Flow Rate 250 ~ 500 cc/min
Preheating Time 3 min
Power Consumption 0.28 kW
Fuel Consumption 0.2 ~ 0.7 ℓ/hr
Water Tank Capacity 11ℓ
Fuel Tank Capacity 11ℓ
Net Weight 52kg
Dimensions (L x W x H) 770 x 480 x 740mm
Hose/Gun Included 1 set
※ Specs and spares are subject to change without notice for improvement.
